Bell & Gosset

Double Suction Pumps

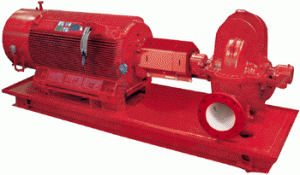

Series e-HSC Double Suction Centrifugal Pumps

Series e-HSC double suction pump provides engineers, contractors, and building owners a more powerful, serviceable, and efficient solution for a wide range of critical HVAC applications.


Features​

  • Longer running life: Due to a longer running shaft, reducing vibrations, tripling its life

  • More Powerful: flow rate of up to 26,600 gpm, it is easy for this pump to handle larger capacity applications at a higher head

  • Suitable for any installation

  • More efficient

Series VSX Space Saving Double Suction Centrifugal Pumps

The Bell & Gossett VSX Double-Suction Split-Case Pump has Maintenance-Free Bearings, new One-Piece Unitized Seal, Groutless Base Plate, Alignment-Friendly Coupling, reduced pump room footprint by up to 40% when compared to traditional split-case and vertical inline pumps.


Features​

  • Hydraulic coverage to meet all your design requirements

  • Volute & Cover Plates: Cast iron ASTM A159 (35,000 psi)*

  • Impeller: Low Zinc Silicon Bronze ASTM 876

  • Sleeve: 304 Stainless Steel

Series HSCS Large Double Suction Centrifugal Pumps

Double-suction, base-mounted Series HSCS pumps are available in 8” through 14” sizes. Motor sizes through 1000 HP. Flows to 12,500 GPM and heads to 600 feet. Externally flushed mechanical seals are standard features on this series.


Series HSC-S Small and Medium Double Suction Centrifugal Pumps

Double-suction, base-mounted Series HSC-S pumps are available in 2” through 10” sizes. Motor sizes through 300 HP. Flows to 6500 GPM and heads to 600 feet. Bronze-fitted construction with working pressures available up to 400 psig with 250# ANSI flanges. This pump features externally flushed mechanical seals. Closed-end steel baseplate with full seam welds for strength and an open top for easy grouting. The HSC-S offers horizontal mounting (Model 150). The pump bearings and mechanical seals can be serviced without disturbing the piping connections or electrical motor connections. An ANSI-OSHA-compliant coupling guard shields the flexible coupler.

Features​

  • Long coupled, base mounted, single stage, double suction, horizontally split case design, in cast iron bronze fitted construction specifically designed and guaranteed for quiet operation.

  • Suitable standard operations at 225°F (107°C) and 175 psig (12 BAR) working pressure or optional operations at up to 250°F (121°C) and 280 (19 BAR) or 400 psig (27 BAR) working pressures.

  • Working pressures shall not be derated at temperatures up to 250°F (121°C).

  • The pump internals is capable of being serviced without disturbing piping connections or electrical motor connections.


Series HSC³ Small and Medium Double Suction Centrifugal Pumps

Double-suction, base-mounted Series HSC³ pumps are available in 2” through 10” sizes. Motor sizes through 300 HP. Flow to 6500 GPM and heads to 400 feet. Bronze-fitted construction with a maximum working pressure of 175 psig.

The HSC³ features internally self-flushing mechanical seals for maximum lubrication, debris removal and heat dissipation. The internally flushed seals allow for a shorter shaft for reduced deflection for longer seal life. Closed-end steel baseplate with full seam welds for strength and an open top for easy grouting. The pump bearings and mechanical seals can be serviced without disturbing the upper casing half, piping connections or electrical motor connections. An ANSI-OSHA-compliant coupling guard shields the flexible coupler.
